  • High Quality Turbomolecular Vacuum Pump

    High Quality Turbomolecular Vacuum Pump
    Turbo molecular pump is a kind of mechanical vacuum pump, within which the gas molecular is brought out by the relative high speed rotation of the multi-step dynamic and static turbo vanes therefore to create an extra high vacuum range. The turbo-molecular pump features high speed...
    Product Details:


    Introduction


    Turbo molecular pump is a kind of mechanical vacuum pump, within which the gas molecular is brought out by the relative high speed rotation of the multi-step dynamic and static turbo vanes therefore to create an extra high vacuum range. The turbo-molecular pump features high speed of degassing quantity in the molecular flow area and high compressive ratio, consuming less energy than the diffuser pumps and no oil steam pollution.



    TYFB-3600 turbo molecular pump is the one with maximum degassing speed domestically at present, its dynamic vanes’ variable cross-section shape features high intensity and lower in weight. Therefore, the pump’s capability is more reliable and stable.



    Our molecular pump has no special requirement for the gas it pumped, and has no memory trace. Because of high compressive ratio for the gas of high molecular weight, the pump can create very clean high vacuum and extra high vacuum without equipping cold trap and oil baffle.



    TYFB-3600 turbo molecular pumps uses the precision ceramic bearings as its sustainer, with water cooling as its cooling method, so the cooling water temperature should be under 20 . The pump operation is stable after its rotor‘s dynamic equilibrium. The tri phase mouse cage type motor is used as pump driver. The cone hole axle automatically absorbs lubricant to lubricate the bearings, this method is very easy and reliable.



    Specification


    High vacuum flange

    100 ISO-K

    Backing pump flange

    400 ISO-K

    Pumping speed L/S

    3600

    Compressive ratio

    N2

    > 109

    H2

    > 6X103

    Ultimate pressure (Pa)

    < 2×10-8

    Rotational speed (rpm)

    12600

    Vibration value

    ≤ 0.15μm

    Bearing

    Ceramic bearing

    Running up time (min)

    10

    Running down time (min)

    20

    (Recommended) Backing pump (L/S)

    30-70

    Cooling mode

    Water cooling

    Cooling water temperature (℃)

    20

    Cooling water flow quantity (L/min)

    1

    Pump body baking temperature (℃)

    <80

    Ambient temperature (℃)

    5-40

    Installation position

    Vertical ±5°

    Pump weight (kg)

    ≈100



    Advantages


    ◆ Extremely high reliability and long service life.

    ◆ Ultra high vacuum can be achieved even with high backing pressure levels.

    ◆ A long-life bearing mechanism (ceramic bearing) reduces maintenance costs.

    ◆ The pump can be used even in processes with the existence of reaction products and processes using corrosive gas.

    ◆ Thanks to the sophisticated rotor design, extremely high pumping speed, critical backing pressure and gas throughput values are achieved.



    Application


    The TYFB-3600 turbo molecular pump can be used in the field of electronics, metallurgy, chemicals, science technological research and vacuum technology, etc.

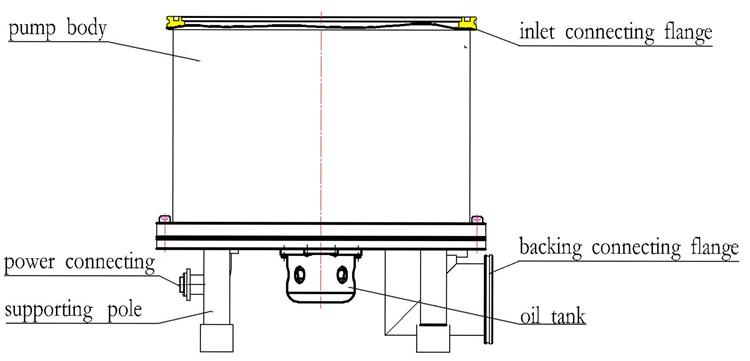

    Structure Drawing of TYFB3600 Turbo Molecular Pump






    The mounting size schematic of TYFB3600 turbo molecular pump





    Packing: 1. Wooden box

                      2. Carton

                      3. As your request


    Payment: T/T, L/C, etc.


    Delivery time: Normally 15~20 days after payment


    Shipping: By air or by sea
