Vacuum Gauge
Introduction
Vacuum gauge is a kind of sensor to measure vacuum degree. The signal measured by the vacuum gauge is transmitted to the vacuum gauge, and the vacuum degree of the vacuum environment can be displayed after the amplification treatment of the signal...
Classification

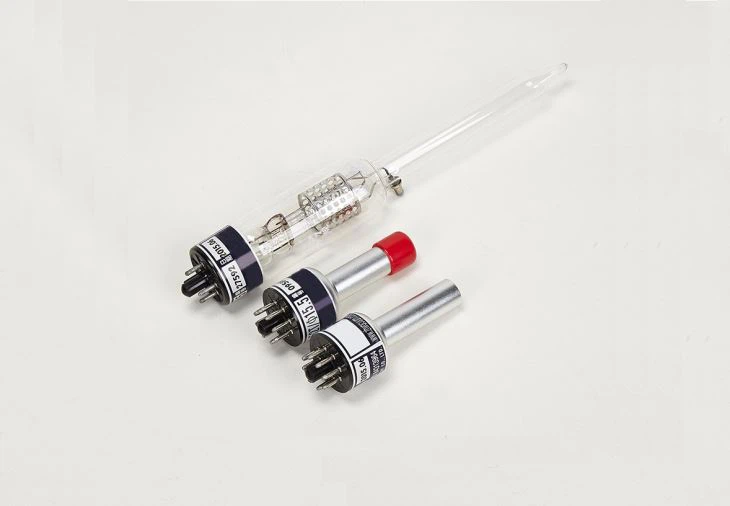

◆ Thermocouple gauge
ZJ-54DThermocouple gauges are mainly used for low vacuum measurement.
◆ Hot cathode gauge
ZJ-10 series and ZJ-27 series hot cathode gauges are mainly used for high vacuum measurement.
Features
◆ With automatic environment temperature compensation and dust protection function, ZJ-54D thermocouple gauge has the characteristics of simple structure, wide measurement range, fast response, anti-pollution, anti-oxidation, small drift, long service life, stable performance and so on especially for low vacuum measurement.
◆ ZJ-10 and ZJ-27 hot cathode gauges has typical triode box structures. Adopting noble metal oxides cathodes, they have the features of oxidation resistance, instantaneous atmospheric impact resistance, stable performance and long service life. they are very suitable for medium and high vacuum measurement.
Application
Vacuum gauge is mainly used for vacuum measurement of vacuum environment such as vacuum coating, solar collector tube manufacture, vacuum smelting, etc.
Specification
Model | ZJ-54D | ZJ-10(DL-5) | ZJ-27 | |
Material | Metal shell | Glass | Glass | |
Measurement Range | 250Pa~0.25Pa | 10~10-4Pa | 5~5×10-6Pa | |
Overall Height | ≦120mm | ≦250mm | ≦250mm | |
Pipe Diameter | <null> | 35±1mm | 35±1mm | |
Exhaust Pipe Diameter | 15.5±0.5mm | 15.5±0.5mm | 15.5±0.5mm | |
Heating Current | 29±0.5mm | <null> | <null> | |
Gauge Weight | About 58g | <null> | <null> | |
Response Time | ≦3s | <null> | <null> | |
Anode Voltage | <null> | 165V | 225±2V | |
Cathode Voltage | <null> | 50V | 25±1V | |
Emission Current | 10~10-2Pa | <null> | 50μA | <null> |
10~10-4Pa | <null> | 500μA | <null> | |
le | <null> | <null> | le1±le2 | |
Sensitivity | <null> | 0.015Pa-1 | <null> | |
Gauge Constant | <null> | <null> | 0.15±100（Pa1） | |
Range | 1.33~1.33×101Pa | 1.33×101Pa~6×105Pa | |
Emission Current | le1 | 90~100μA | 1mA |
le2 | 50μA | 5mA | |
Packing: 1. Wooden box
2. Carton
3. As your request
Payment: T/T, L/C, etc.
Delivery time: Normally 15~20 days after payment
Shipping: By air or by sea
