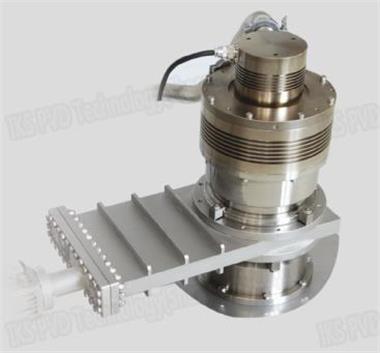

    Grease Lubrication Molecular Pump
    TYFB-1300Z Grease Lubrication Molecular Pump Introduction TY series compound molecular pump consists of a turbo-molecular pump and a plate drag pump. The turbo-molecular pump features high speed of degassing quantity and high compressive ratio while in molecular flow. Drag pump features high...
    Product Details:

    Introduction

    TY series compound molecular pump consists of a turbo-molecular pump and a plate drag pump. The turbo-molecular pump features high speed of degassing quantity and high compressive ratio while in molecular flow. Drag pump features high speed and high compressive ratio while in high compressive strength. It has the advantages of the both pumps. Thereafter these expand the application range of the compound molecular pump.



    The compound molecular pump has no special requirement for the gas it pumped, and has no memory trace. Because of high compressive ratio for the gas of high molecular weight, the pump can create very clean high vacuum and extra high vacuum without equipping cold trap and oil baffle. The compound molecular pump can be used in the field of electronics, metallurgy, chemicals, science technological research and vacuum technology, etc.



    Structure Feature

    TYFB-Z grease lubrication molecular pumps uses the precision bearings as its sustainer, with water cooling or air cooling as its cooling method. The rotor operation is stable after the machine‘s dynamic equilibrium. The tri phase mouse cage type motor is used as pump driver. The grease lubrication is used to lubricate the bearings, this method is easy and reliable, so it can meet the requirement of any kind of angular space for installation.





    Specification

    High  vacuum flange

    200 CF

    200 ISO-K

    Backing pipe flange

    40 KF

    Protection gas charge flange (anticorrosion)

    16 KF

    Pumping    speed L/S

    1300

    Compressive  ratio

    N2

    >109

    H2

    >1X104

    Ultimate pressure (Pa)

    <8×10-8

    <5×10-7

    Rotational speed (rpm)

    24000

    Bearing used

    Grease lubrication ceramic bearing

    Vibration value

    ≤0.1μm

    Running up time (min)

    5

    (Recommended)    Backing pump (L/S)

    8-15

    Cooling    mode

    Water cooling (air cooling)

    Cooling water temperature (℃)

    ≤20℃

    Cooling water flow quantity (L/min)

    1

    Installation position

    Any  angle°

    Pump weight (kg)

    ≈27



    Advantage

    ● Lower libration and noise.

    ● Easy to acquire the high or ultra-high vacuum.

    ● Special design on the rotor for high safety and stability.

    ● Have the ability of high resist pressure for the backing.



    Application

    TYFB-1300Z grease lubrication molecular pumps can be widely used in the field of vacuum including electronics, metallurgy, chemical  industry and scientific research such as high-energy accelerator, controlled thermonuclear reactor, research of plasma physics, surface physics and analytical instrument, semiconductor and optical components manufacturing, flat panel display, solar battery, vacuum coating, vacuum smelting and so on.

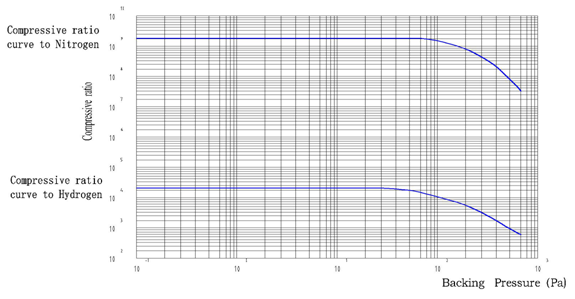

    Gas pumping speed curve of TYFB-1300Z Grease                     Compressive Ratio Curve of TYFB-1300Z Grease

    Lubrication Molecular Pumps                                                        Lubrication Molecular Pumps to Nitrogen and Hydrogen

    blob.png  blob.png

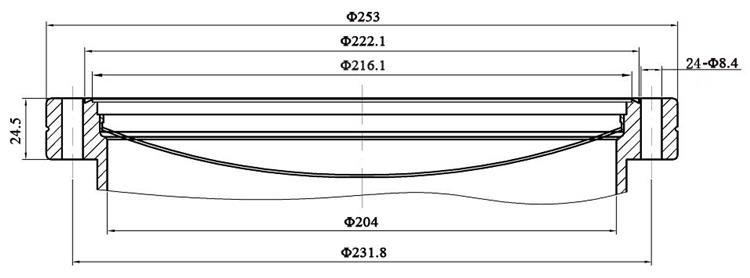

    The size of TYFB-Z grease lubrication compound molecular          The size of TYFB-Z grease lubrication compound molecular

    pump high vacuum connecting with flange 200CF                           pump high vacuum connecting with flange 200 ISO-K

    5.jpg       6.jpg





    The size schematic of TY series compound molecular pump backing connecting with flange

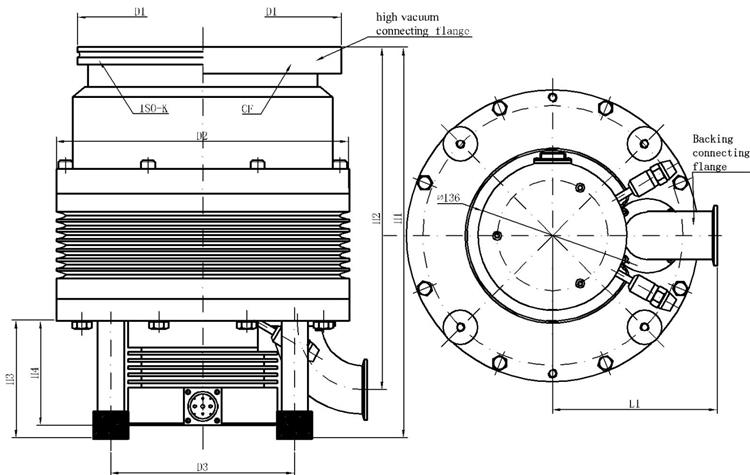

    The size of TYFB-1300Z compound molecular pump high vacuum connecting with flange

    Pump Type

    TYFB-1300Z


    High Vacuum Flange Type

    200 CF

    200 ISO-K

    D1

    φ253

    φ240

    D2

    φ267

    φ267

    D3

    □167.6

    □167.6

    L1

    142

    142

    L2

    152

    152

    H1

    393

    393

    H2

    108

    108

    H3

    135.5

    135.5

    H4

    104

    104

    Screw Hole For Standing   Pole

    4-M8

    4-M8
