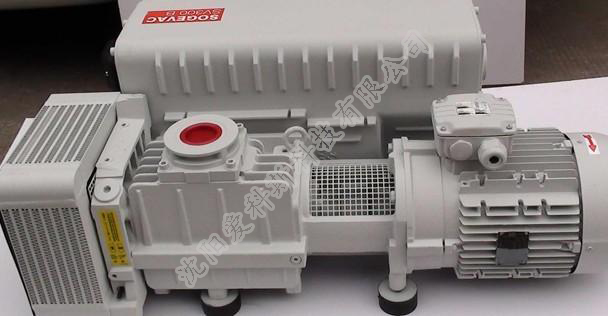

    Single-stage oil-sealed Rotary Vane Vacuum Pump SOGEVAC SV 300 B
    Oil sealed rotary vane vacuum pumps are being used in all areas of vacuum engineering. They are equally suited for both industrial production and research applications. They may be used to generate a rough and medium vacuum or as backing pumps in pump combinations with Roots pumps...
    Product Details:


    Introduction


    Oil sealed rotary vane vacuum pumps are being used in all areas of vacuum engineering. They are equally suited for both industrial production and research applications. They may be used to generate a rough and medium vacuum or as backing pumps in pump combinations with Roots pumps or high vacuum pumps. By design, rotary vane pumps run quetly and do not produce much noise.




    Advantages


    ◆ Integrated exhaust filter

    ◆ Integrated oil recovery system and anti suckback valve

    ◆ Extremely low noise level

    ◆ High reliability

    ◆ Different gas ballast versions available

    ◆ Improved ultimate pressure stability

    ◆ Low operating temperature

    ◆ Low maintenance intervals

    ◆ Pot design vacuum generation

    ◆ Internal transfer lubrication

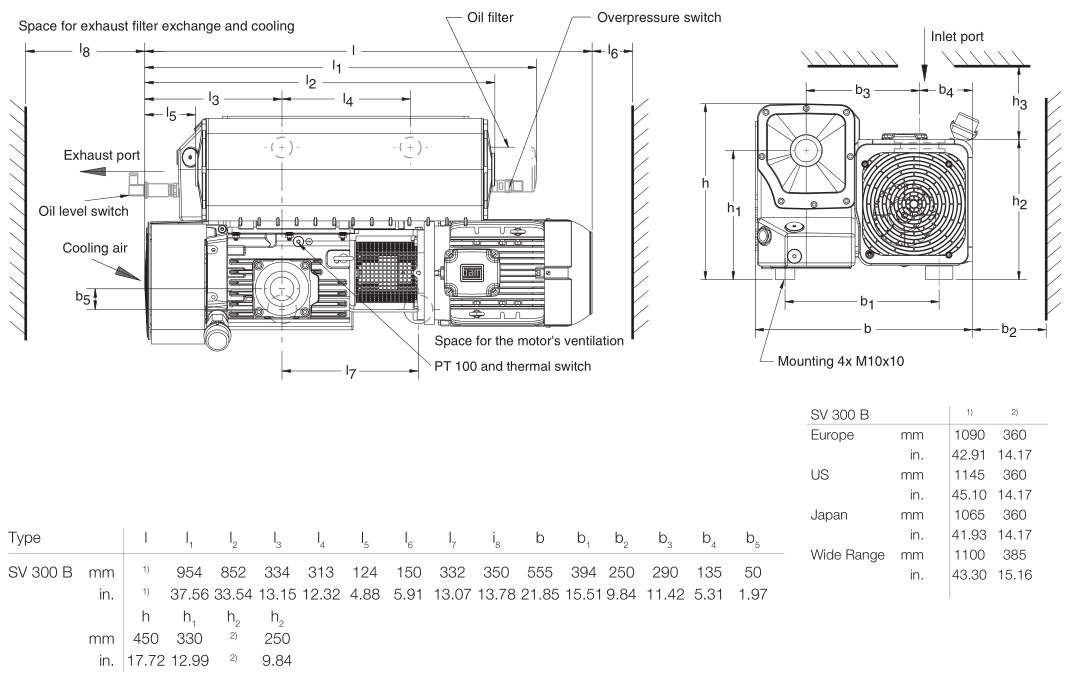

    Dimensional drawing for the SOGEVAC SV 300 B




    Pump-down characteristics of a 1000 l vessel at 50 Hz





    Pumping speed characteristics of the SOGEVAC SV 300 B at 50 Hz




    Specification


    SOGEVACSV 300 B
    50 Hz 60 Hz
    Nominal pumping speed                                                       m3 x h-1 280
    340
    Pumping speed (according to PNEUROP)                            m3 x h-1240290
    Ultimate partial pressure without gas ballast                             mbar ≤8.10-2
    Ultimate total pressure with standard gas ballast                      mbar≤0.7
    Water vapor tolerance with standard gas ballast, max.             mbar6.08.0
    Motor power                                                                                 kW5.5
    6.3
    Rated rotational speed                                                             min -1 14501750
    Noise level                                                                               dB (A) 7074
    Protection class IP-55 F
    Leak rate                                                                           mbar.l.s -1≤1.10-3
    Oil filling capacity (min./max.)                                                           l8.5 / 11.5
    Oil type LEYBONOL LVO 130 / LVO 210
    Net weight (with oil filling)                                                               kg220225
    Ambient temperature                                                                     °C12 - 40

    Intake connection

    Exhaust connection

    G2“




























    Application Examples


    ◆ Car industry

    ◆ Food industry

    ◆ Furnaces and plants

    ◆ Laser technology

    ◆ Medicinal technology

    ◆ Metallurgy

    ◆ Power engineering, long-distance energy

    ◆ Space simulation

    ◆ Vacuum coating
