  • ElectrO-Vacuum Charging Valve

    ElectrO-Vacuum Charging Valve
    DDC-JQ Electro-Vacuum Charging Valve Introduction DDC-JQ electro-vacuum charging valve is a safety valve for vacuum pump. It is mounted at the intake nozzle of vacuum pump. In case that vacuum pump stops working or power supply is suddenly broken off, valve will be closed automatically to...
    Product Details:

    Introduction

    DDC-JQ electro-vacuum charging valve is a safety valve for vacuum pump. It is mounted at the intake nozzle of vacuum pump. In case that vacuum pump stops working or power supply is suddenly broken off, valve will be closed automatically to maintain the vacuum constant and inject air into the pump chamber, thus to prevent the pollution of vacuum system due to reverse flow of oil. Applicable medium can be pure air and noncorrosive gases.



    Specification

    Applicability

    105~10-3Pa

    Valve Leak Rate

    ≤6.7×10-3 Pa.L/s

    Applicable Temperature

    -30~+50℃

    Coil Temperature Rise

    ≤65℃

    Open-Close Time

    ≤3s

    Mains Voltage

    220v/50Hz

    Power

    15w~40w

    Frequency

    ≤3 times/min

    Peak Current

    0.2A(DN25~DN40), 2A(DN50~DN80)

    Power Dissipation

    12w,40w(DN25~DN40), ≤12w(DN50~DN80)

    Installation Direction

    Vertical or Horizontal



    Materials of Main Parts

    Body, bonnet and disc:carbon steel and aluminum alloy

    Seal ring:NBR

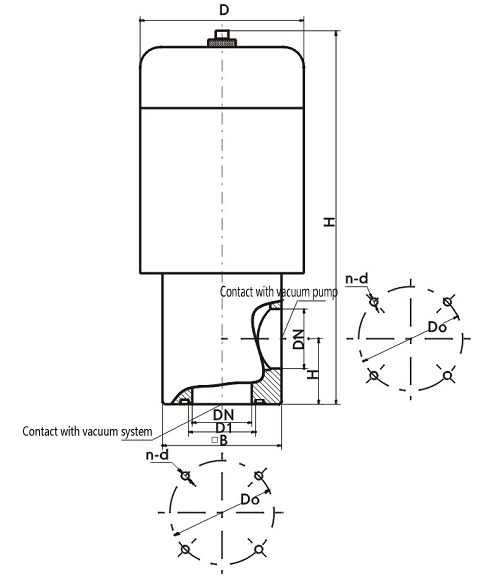

    Overall and Connection Dimensions (mm) (JB919)


    Model

    DN

    h

    B

    H

    D

    Do

    D1

    n-d

    Mechanical pump

    DDC-JQ16

    16

    28

    48

    176

    68

    42

    22

    4-M5

    2XZ-0.5~1

    DDC-JQ25

    25

    35

    58

    199

    82

    55

    29

    4-M6

    2XZ-2~4

    DDC-JQ32

    32

    40

    68

    222

    92

    64

    36

    4-M6

    2XZ-4

    DDC-JQ40

    40

    44

    80

    253

    110

    70

    44

    4-M6

    2XZ-8

    DDC-JQ50

    50

    56

    94

    294

    124

    90

    55

    4-M8

    2X-15

    DDC-JQ65

    65

    65

    115

    320

    135

    105

    70

    4-M8

    2X-30

    DDC-JQ80

    80

    75

    140

    367

    165

    125

    85

    4-M8

    2X-70
