  • ZY-1612 Decorative Vacuum Coating Machine

    ZY-1612 Decorative Vacuum Coating Machine
    Introduction ZY-1612 decorative vacuum coating machine is a high-quality vacuum coating equipment that specially used for mobile phone coating. It adopts multi-arc ion coating technology, medium frequency magnetron sputtering technology, pulsed bias technology and other advanced technologies....
    Product Details:


    Introduction



    ZY-1612 decorative vacuum coating machine is a high-quality vacuum coating equipment that specially used for mobile phone coating. It adopts multi-arc ion coating technology, medium frequency magnetron sputtering technology, pulsed bias technology and other advanced technologies.



    Besides, the using of high-power medium frequency sputtering targets, magnetron medium-frequency cylindrical targets and pneumatic arc round targets greatly increases the sputtering rate of the target as well as the deposition rate of the dielectric coating. Also, the uniformity and adhesion of the coating is improved accordingly.



    At the same time, ZY-1612 decorative PVD coating machine is equipped with new PLC intelligent operating system independently developed by ourselves, which has the function of equipment coating process setting, data acquisition and recording. Manual/automatic integrated touch microcomputer control operation and automatic control system provide stable and reliable performance with simple and quick operation.



    Application



    ZY-1612 PVD coating machine can be used to make smooth coating in various nice colors such as IP-black, rose gold, IP gold, sapphire blue, champagne gold, silver, brown, colorful, gun black, zirconium, rose red and so on. The coating is dense, and uniform with strong adhesion. Therefore, it is also widely used to deposit TiN, TiC, TiCN, CrN, TiAlN and other coatings on the cell phone shell, phone frame, watchcase, golf equipment, hardware, tableware, spectacle frames and other products.



    Features



    1. Environment protecting and pollution-free.

    2. Equipped with a large-scale vacuum chamber (φ1600 × H1200) to ensure large loading capacity and high production efficiency, cost savings.

    3. Full automatic control system with simple operation and stable performance.

    4. The coating is extremely smooth, dense and shiny.

    5. Excellent film uniformity and repeatability.


    Specification


    Chamber Size
    φ1600*H1200Effective Spaceφ1250*H900
    Max Dia of Workpiece*qtyφ210*16pcsPumping-down Time(from atm.to 4*10-3<25 mins
    Voltage/Hz380V/50HzActual Power70KW
    TechnologyIF+ARC (Optional)Target Qty

    5 Arc Targets/

    8 Cylindrical Targets

    Ultimate pressure5.0*10-4PaLeak Rate<10-3Pa.L/s
    Standard Coatings

    IP-black, rose gold, IP-gold, sapphire

    blue, champagne gold, silver, brown,

    colorful, gun black, rose red, etc.

    Standard Configuration

    5 Cathode Arcs/

    8 MF Cylindrical Targets

    Rotating Stand StructureLower Structure

    Vacuum Chamber

    Structure

    Vertical Single Open

    Power Supply

    MF Magnetron Power Supply

    Pulse-bias Power Supply

    Special Vacuum Arc Power Supply

    Vacuum System

    Molecular Pump

    Roots pump

    Rotary Vane Pump

    Coating Cycle1.5-3.5 hours/furnaceOccupation SpaceL3200*W3500*H2600mm
    Control Method

    PLC+Touch Screen

    Dynamic Components

    Supporting Conditions

    Circulating Water Pressure:

    2-3KG/CM3

    Industry PC+PLC+Touch Screen

    Flow:10T/H
    Our own special coating softwareCompressed Air:4-6KG/CM3
    Working GasAr, N2, O2, C2H2, etcApplicationDecorative Coatings
    NotesFurnace, Outlook and Other Parameters Can be Customized According to the Requirement.

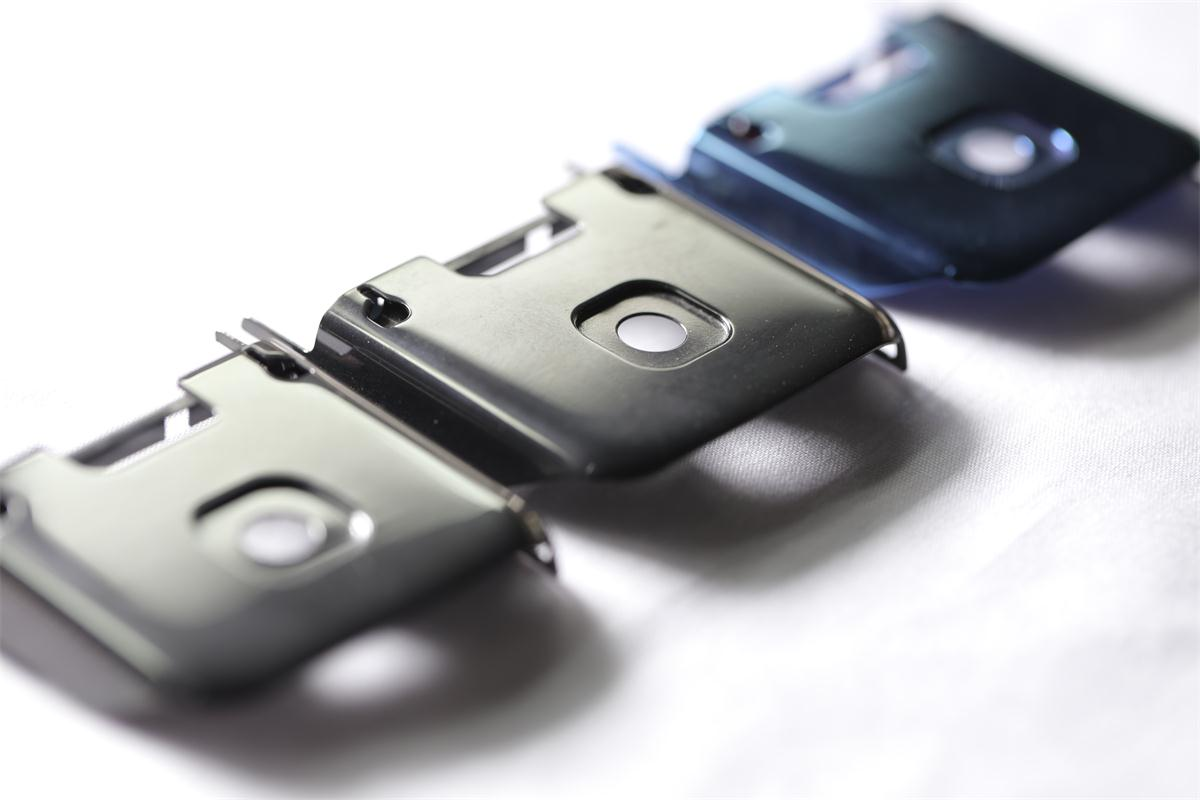

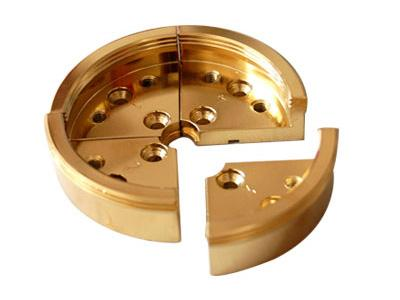

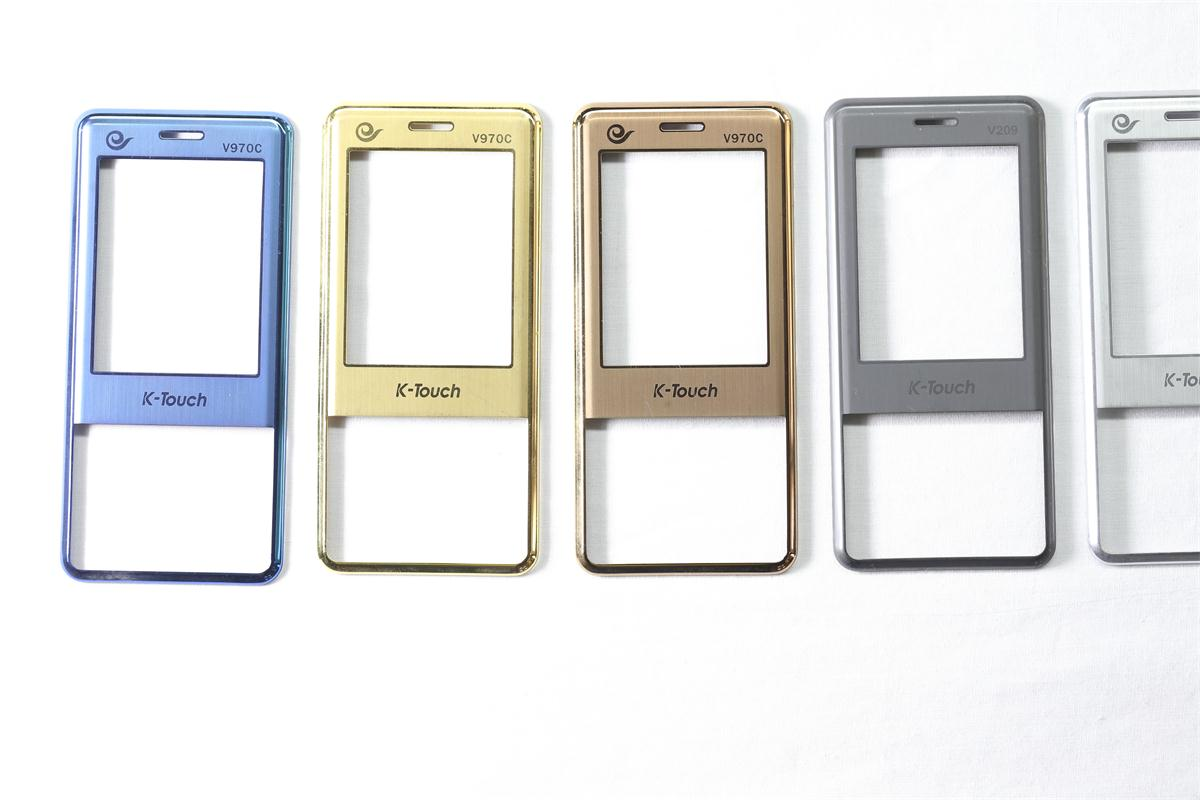

    blob.png blob.png blob.png
