Product Introduction

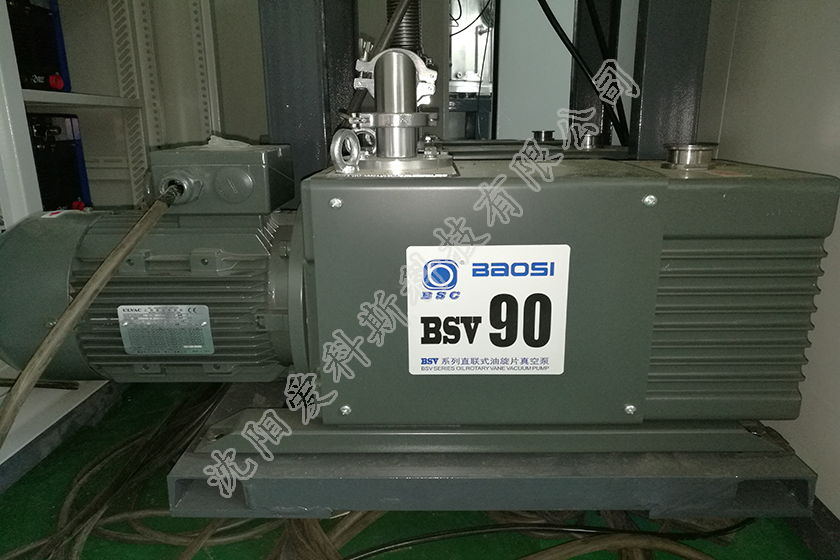

BSV Series Directly-Connected Oil Rotary Vane Vacuum Pump

Introduction

BSV series rotary vane vacuum pump adopts the first cylinder external-positioning method, which makes full use of oil cooling and air cooling to dissipate heat. It has the advantages of high rotation speed, low temperature, low noise, compact structure, easy start, etc.

Specification

Type Item		BSV60	BSV90	Unit
Pumping speed	50Hz	60(1000)	90(1500)	m³/h (L/min)
	60Hz	72(1200)	108(1800)
Ultimate pressure	With gas ballast	5×10^-1		Pa
	Without gas ballast	2.0
Motor power (Three phase, four pore)		2.2	3.7	kW
Oil filling capacity		2.5～4.2		L
Inlet and outlet diameter		KF40		DN

Excellent structure and performance

◆ Use springless rotary vanes. It is possible to avoid pump failure due to spring breakage.

◆ Forced fuel supply method. In the continuous exhaust operation near atmospheric pressure, stable exhaust performance can be obtained by this method.

◆ Hydraulic oil counterflow prevention mechanism. An oil check valve is installed in the pump to minimize the amount of reverse flow entering the pump and solve the problem of starting difficulty due to the oil reflux caused by power failure or accidental pump stop.

◆ Variable oil filling capacity. The pump is designed to simplify the management of oil quantity by expanding the scope of oil indication.

Application examples

◆ Vacuum coating

◆ Lighting

◆ Refrigeration

◆ Vacuum Drying

◆ Freeze Drying

◆ Photovoltaic Industry

◆ Analytical Instruments

◆ Inspection Equipment

◆ Packaging

◆ Heat Treatment Metallurgy
