Wc Accessories PVD Coating Machine
wc accessories PVD coating machine is a high-quality vacuum coating equipment specially used for the coating of sanitary products. And it is a multi-arc machine.
- Product Introduction
IKS PVD Technology (Shenyang) Co., Ltd. is one of the most reliable manufacturers and suppliers of wc accessories pvd coating machine in China, featured by quality products and low price. If you're going to wholesale cheap wc accessories pvd coating machine made in China, welcome to get quotation from our factory.
WC accessories PVD coating machine is equipped with newly developed PLC intelligent program and touch screen automatic control system, which can complete the process settings, data collection, recording and other missions. Also, it has is simple and fast operation, as well as stable and reliable performance.

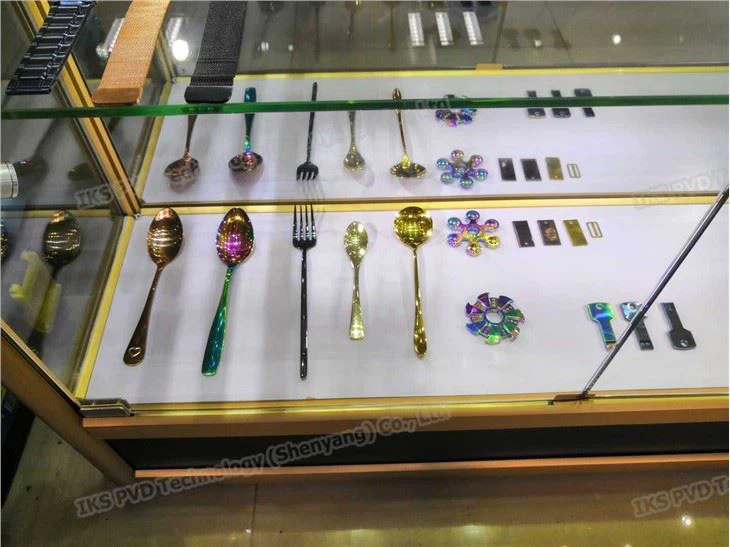

it can make smooth coatings in IP black, rose gold, IP gold, sapphire blue, champagne gold, silver, brown, colorful, gun black, zirconium, rose red and other colors, the coating is awfully dense and uniform with strong adhesion to have an effect of beauty and protection. Therefore, the machine is widely used to make TiN, TiC, TiCN, CrN, TiAlN and other high-quality coatings for the bathroom accessory, hardware, watchcase, bracelet, golf equipment, tableware and other products.
Features
1. Environment protecting and pollution-free.
2. Equipped with a large-scale vacuum furnace (φ1500 × H1500) to ensure large loading capacity and high production efficiency, cost savings.
3. Full automatic control system ensures simple operation and stable performance.
4. The coating is extremely smooth, dense and shiny.
5. Excellent film uniformity and repeatability.
6. Convenient and quick maintenance of equipment.
Specification
| Chamber Size | φ1500*H1500 | Effective Space | φ1250*H1200 |
| Max Dia of Workpiece*qty | φ240*8pcs | Pumping-down Time | (from atm.to 4*10-3<25 mins |
| Voltage/Hz | 380V/50Hz | Actual Power | 100KW |
| Technology | IF+ARC (Optional) | Target Qty | 11 Arc Targets/ 4 Cylindrical Targets |
| Ultimate pressure | 5.0*10-4Pa | Leak Rate | <10-3Pa.L/s |
| Standard Coatings | IP-black, rose gold, IP-gold, sapphire blue, champagne gold, silver, brown, colorful, gun black, zirconium, rose red... | Standard Configuration | 11 Cathode Arcs/ 4 MF Cylindrical Targets |
| Rotating Stand Structure | Lower Structure | Vacuum Chamber Structure | Vertical Single Open |
| Power Supply | MF Magnetron Sputtering Power Supply Pulse-bias Power Supply Special Vacuum Arc Power Supply | Vacuum System | Molecular Pump Roots pump Rotary Vane Pump |
| Coating Cycle | 0.5-1.5 hours/furnace | Occupation Space | L3600*W3100*H2600mm |
| Control Method | Manual+Semi-automatic+Full automatic Integration | Supporting Conditions | Circulating Water Pressure: 2-3KG/CM3 |
Industry PC+PLC+Touch Screen | Flow:10T/H | ||
| Our own special coating software | Compressed Air:4-6KG/CM3 | ||
| Working Gas | Ar, N2, O2, C2H2, etc | Application | Decorative Coatings |
| Notes | Furnace, Outlook and Other Parameters Can be Customized According to the Requirement. | ||
